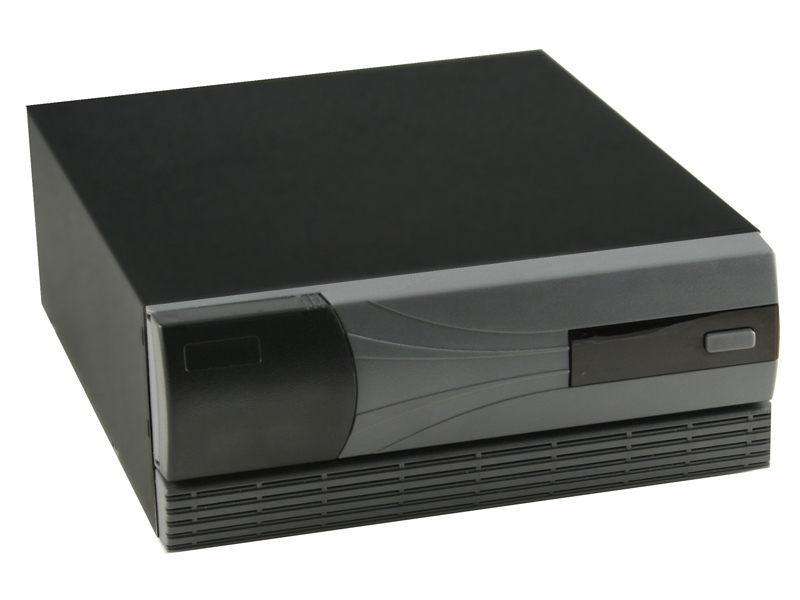

|  C1 Mobile Mini-Box M300 - Small formfactor, very light - HYBRID-C7-1.0G mini-ITX board, 1GHz x86 CPU - Built-in LAN/USB2.0/VGA/audio/Serial - Bootable Compact Flash (any size) - Optional PCMCIA /CF card reader - Optional 1/2/3 LAN module + 1 on-board - Optional 2 serial ports, 2 more on-board - Size 20cm (w) x 7.8 cm x 24cm - PCI riser, fits any size PCI card - can support SATA or PATA HDD - fully ROHS compliant - USB booting note | | | | | Mini-Box M300 is a versatile 1GHz x86 mini-ITX system with multiple expansion options (see modules below). Suited for embedded applications, this enclosure covers a wide range of applications from industrial control to mini-server to kiosk solutions. The M-300 was designed from the ground-up for embedded applications, NO CDROM unit that can betray 'just another PC' system.
The M-300 is similar in functionality with M-200, however M-300 has room for a PCI card and/or addind 3.5" drives (2.5" drive installation is also possible)
The Swiss Knife of embedded computing Ideal platform for OEMs and system integrators, the Mini-Box M-300 is our 3rd generation of embedded systems. White box concept: The M300 is fully customizable -- from OEM logo area, to I/O options (see modules below) to different memory options or operating systems.
Small, Cool and Silent computing Running a 1GHZ x86 compliant VIA processor along with built in MPEG-2 acceleration, the I/O rich M300 consumes an average of 15watts of power while capable of processing large amounts of data.
Designed for long shelf life, the M300 is an unique computing solution, aggressively priced, enabling OEMs and system integrators to provide cost effective solutions for virtually any type of application.
Fully compatible with Windows 2K / XP / Vista, Linux 2.4 / 2.6 and small footprint embedded Linux (CF bootable) featuring easy installation and ready-made packages, please see Imedia Linux
System requirements: This is a barebone configulation. The system will require RAM (DDR type) and 2.5" Hard Disk + IDE cable (40 to 44pin) or Compact Flash (any size). Suggest getting the memory and hard drive configs at the time of purchase so that you will benefit from free professional installation.
All systems are custom build and tested. All systems are subjected to a restocking fee of 15%. Allow 2-3 working days before shipping.

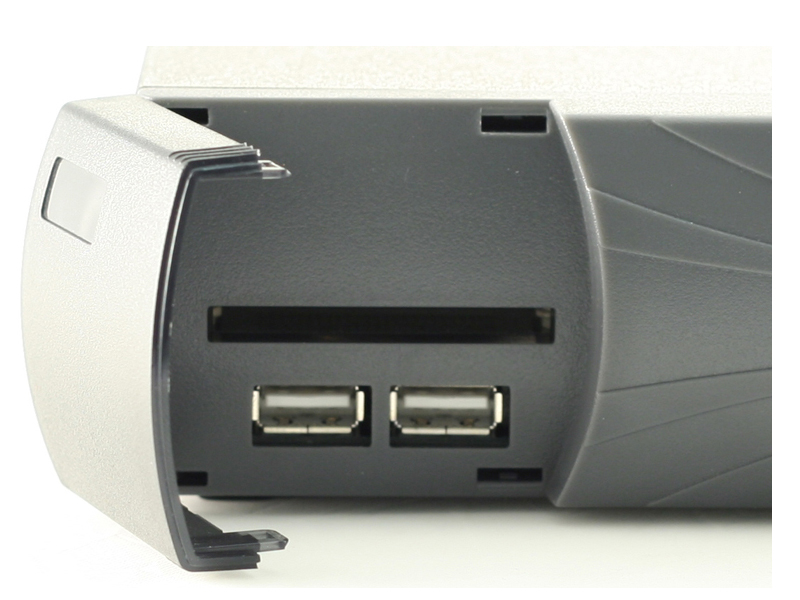

FRONT(behind the door) - Two USB 2.0 - Bootable Compact Flash
FRONT - On/OFF Switch - PWR LED (Red) - Optional IR
TOP plate - allows mounting of up to two 2.5" laptop drives.
BACK 1 x VGA 1 x 10/100 LAN (see modules for more LANs) 1 x Line-in/out/MIC Audio Ports with Onboard 6-Channel AC97’ 1 x PS/2 Keyboard Port 1 x PS/2 Mouse Port 1 x Serial (see modules for more serial ports) 4 x USB 2.0 Kit includes: -
M300 Enclosure -
Jetway Motherboard with 1Ghz -
1Gb DDR2 -
60Gb HDD -
PicoPSU Power Supply (Wide Input) -
12v 6.6A Power Supply (AC-DC) -
Built and tested for delivery | |
