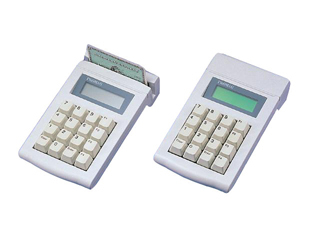

Numerical PINpad with LCD Display with Card Reader
Model No.
:
ACT810 Series
Introduction
:
Three-in-one ACT810 is a compact designed product with the combination of the Numerical Keypad , the LCD Display and the Card Reader . Three-in-one device saves the installation space and provides easy operation . The Product , designed with the state-of-the-art microprocessor and barcode/magnetic card reader technology , is totally compatible with RS-232 interface.
Features
:
* 16 keys keypad , RS-232 interface * Buffered/Un-buffered operation modes selectable * Asterisk/Digit displaying modes selectable * Pre-saved 12 text pages for quickly displaying messages * 16 x 2 LCD to display any messages from the Host * Reader Enable/Disable can be controlled by Host * Keypad Enable/Disable can be controlled by Host
Specifications
:
a. Magnetic card reader : ISO 7811 standard b. Barcode card reader : visible LED or invisible IR type Read barcode symbologies : Numerical digits of Code 39 Code 2 of 5 , Code 93 , Code 11 , Interleave 2 of 5 , EAN/UPC Code 128 c. Display : 16 x 2 characters LCD ( 122*32 dots graphic LCD optional ) d. Keypad : 16 keys , durable mechanical key switches Life time up to 20 million operationse. e. Interface : RS-232 ( Keyboard interface optional ) f. Dimensions : W105 x L185 x H40 mm Note: The Specification is subject to change without notice. Note: The Specification is subject to change without notice.
Application
:
1. Banking systems 2. Stock Transaction systems 3. Payment systems 4. POS systems
Available versions
:
ACT810 - with LCD , without reader ACT812 - with LCD with MSR TK 2 reader ACT813 - with LCD with MSR TK 1&2 reader ACT816 - with LCD with MSR TK 2&3 reader ACT817 - with LCD with MSR TK 1&2&3 reader ACT818 - with LCD with LED barcode reader ACT819 - with LCD with IR barcode reader
Remark
:
122*32 dots graphic LCD model is available on request12 keys or 20 keys model is also available on requestProgrammable keypad model is available on request
